Ready Lock Transom Scaffold

Readylok transom is also known as a ready lock transom, readylok scaffold, and extendable transoms. They are made in predetermined-sized tubes with preset lock fittings on the ends that attach to scaffold verticals (standards) and horizontals (ledgers) in the perfect position, providing self-alignment for the scaffold structure, which plays an essential role in the stability and safety of scaffold towers and frames.

Using Readylok transom saves costs by reducing the quantity of scaffold tubes and couplers, eliminating the need for scaffold ledgers and braces. It also saves time in measuring the setting out for construction.

Wellmade is the manufacturer of the readylok scaffolding transoms. We produce the readylok transom according to TG20 and BS 1139 standards. Contact us for an immediate price now.

Raw Material In Test

Load Test

Mock Up

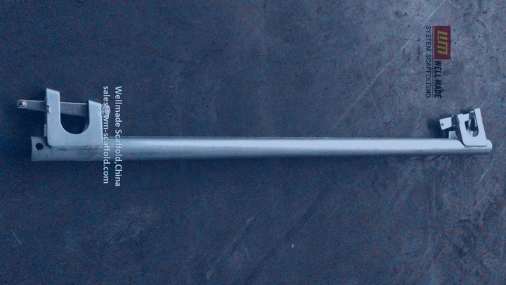

Ready Lock Transom

ready-lock-transom-scaffold-tube-fitting-system-components-uk-scaffolding-companies

ItemMiddle Duty SizeHeavy duty SizeSurface
3 Board Ready Lock TransomOD48.3×3.2mm

Scaffold Tube

OD48.3×4.0mm

Scaffold Tube

E-galvanized
4 Board Ready Lock Transom
5 Board Ready Lock Transom
3 Board,4 Board and 5 Board Ready Lock Transom Can Be Made from OD48.3×3.2mm Scaffold Tube and OD48.3×4.0mm Scaffold Tube with Half Swivel and Closed Plate At Both Ends.

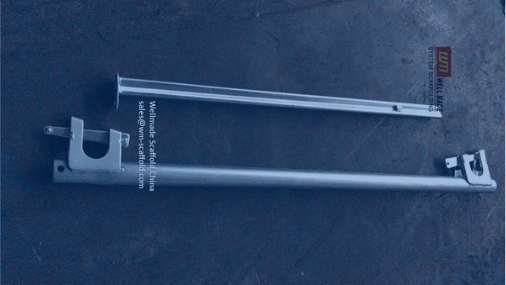

Extendable Ready Lock Transom

extendable ready-lock-transom scaffold tube fittings

ItemMiddle Duty SizeHeavy Duty SizeSurface
4+3 Extendable Ready Lock Transom with 3 Board InternalOD48.3×3.2mm Scaffold TubeOD 48.3×4.0mm Scaffold TubeE-galvanized
