Scaffold Plank

Scaffold Plank Boards

Scaffold Planks Include Steel Scaffolding Planks and Aluminium Planks.
Steel Scaffolding Planks without Hooks Include Scaffold Metal Deck Boards for Tube and Clamp Scaffolding System In Width Size of 210mmx45mm, 225x38mm, 238x58mm, 240x45mm and 250x40mm, 250x50mm.
Scaffold Battens Is also a type of steel scaffolding planks. Which is used in Kwisktage Scaffolding System. Size of the Scaffold Battens Include 238mm to UK and 230mm to Australian.
Scaffolding Planks with Hooks are in Size of 210mm to 500mm According to Construction Scaffolding Design Requirement.

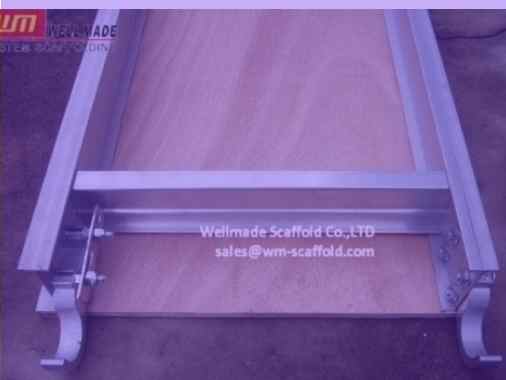

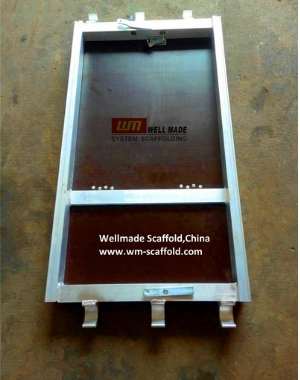

Aluminium Planks Include Full Aluminium Planks and Aluminium Plywood Planks. Size of Aluminium Planks Can be 250mm to 610mm in Width.

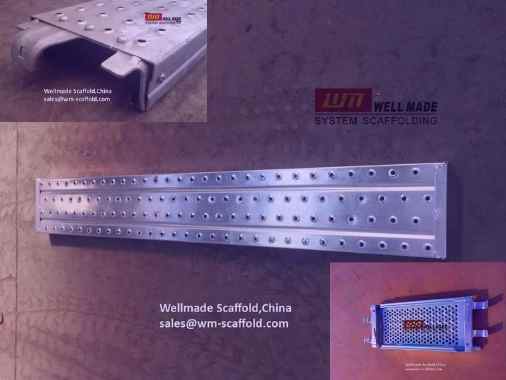

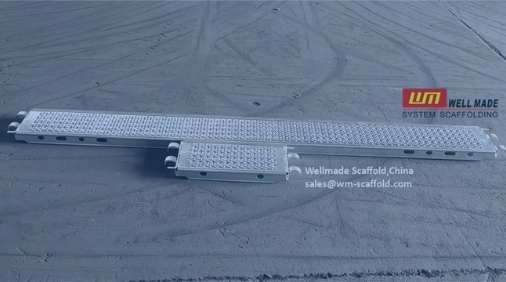

210mm Scaffold Metal Deck

scaffold-metal-deck-210mm-tube-clamp-scaffolding-suspended-hanging-construction

Code Size Wall Thickness Finishing
MD2105 210x45x500 1.0-2.0mm
  • Pre-galvanized
  • Hot Dip Galvanized
  • Painted
MD2110 210x45x1000
MD2115 210x45x1500
MD2120 210x45x2000
MD2125 210x45x2500
MD2130 210x45x3000
MD2135 210x45x3500
MD2140 210x45x4000

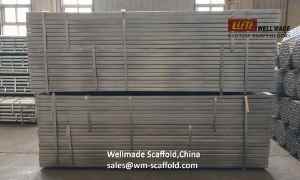

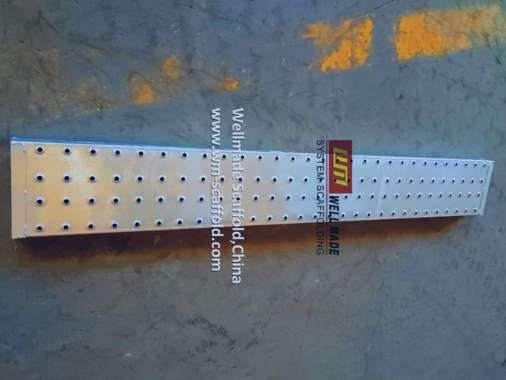

 240x45mm Scaffold Metal Deck

240mm-scaffolding-metal-deck-plank-access-scaffolding-construction-offshore-marine-scaffolding

Code No. Size(mm) Wall Thickness Finishing
MD2405 240x45x500 1.0-2.0mm
  • Pre-galvanized
  • Hot Dip Galvanized
  • Painted
MD2410 240x45x1000
MD2415 240x45x1500
MD2420 240x45x2000
MD2425 240x45x2500
MD2430 240x45x3000
MD2435 240x45x3500
MD2440 240x45x4000

 225x38mm Scaffold Boards

225-38mm-scaffold-board-kuwait-oil-gas-construction-scaffolding-parts-access-suspended-scaffold

Code Size(mm) Wall Thickness Finishing
MD2205 225x38x500 1.0-2.0mm
  • Pre-galvanized
  • Hot Dip Galvanized
  • Painted
MD2210 225x38x1000
MD2215 225x38x1500
MD2220 225x38x2000
MD2225 225x38x2500
MD2230 225x38x3000
MD2235 225x38x3500
MD2240 225x38x4000

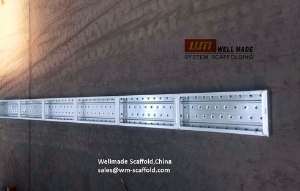

250x40mm Scaffold Metal Plank

250mm-scaffold-metal-plank-scaffold-board-metal-deck-indonesia-contractor

Code No. Size(mm) Wall Thickness Finishing
MD25405 250x40x500 1.0-2.0mm
  • Hot Dip Galvanized
  • Pre-galvanized
  • Painted
MD25410 250x40x1000
MD25415 250x40x1500
MD25420 250x40x2000
MD25425 250x40x2500
MD25430 250x40x3000
MD25435 250x40x3500
MD25440 250x40x4000

250x50mm Scaffold Metal Plank

250mm-scaffold-metal-deck-50mm-thickness-offshore-construction-indonesia-contractors

Code No. Size(mm) Wall Thickness Finishing
MD25505 250x50x500 1.0-2.0mm
  • Hot Dip Galvanized
  • Pre-galvanized
  • Painted
MD25510 250x50x1000
MD25515 250x50x1500
MD25520 250x50x2000
MD25525 250x50x2500
MD25530 250x50x3000
MD25535 250x50x3500
MD25540 250x50x4000

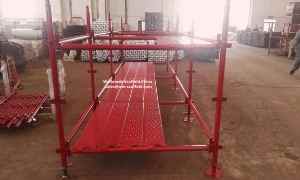

 Scaffold Board 230x63mm(Kwikstage Australian Standard)

as1576-australian-scaffolding-standard-scaffold-boards-kwikstage-scaffolding-battens

Code Size Wall Thickness Finishing
SPAS074 230x63x740mm 1.6-2.0mm
  • Pre-galvanized
  • Hot Dip Gal
SPAU125 230x63x1250mm
SPAU181 230x63x1810mm
SPAU242 230x63x2420mm

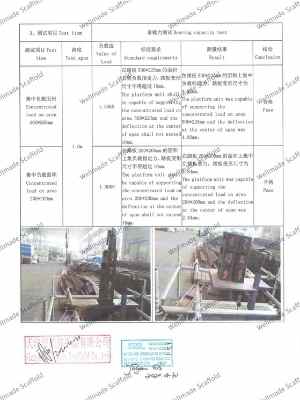

230x63mm scaffold board is component of kwikstage scaffolding australian standard which is tested and certified by AS/NZS 1577 Standard by MTS Melbourne Testing House in AU

238x57mm Scaffold Batten British Kwiskstage Scaffold

238-57mm-scaffold-batten-scaffold-boards-british-standard-kwikstage-scaffolding

Code Size Wall Thickness Surface
SPBS04 238x57x1250mm 1.5-2.0mm

Pre-galvanized

Hot dip galvanized

SPBS06 238x57x1810mm
SPBS08 238x57x2420mm
Scaffold Batten Boards are Sit on British Standard Kwikstage Scaffolding Transom in Construction Scaffolding.

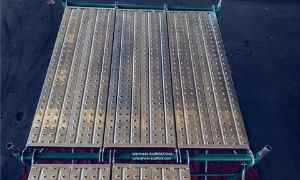

Steel Plank with Hooks 210mm

210mm-scaffolding-plank-with-hooks-ringlock-scaffolding-system-ring-lock

Code No. Size(mm) Wall Thickness Finishing
SP2112 210x45x1219 1.4-2.0mm

  • Hot Dip Galvanized
  • Pre-galvanized
  • Painted
SP2115 210x45x1500
SP2118 210x45x1830
SP2120 210x45x2000
SP2121 210x45x2130
SP2124 210x45x2440
SP2125 210x45x2500
SP2130 210x45x3000
Note: Steel Plank with Hooks Length is Customized According to System Scaffolding Ledger Size.

 Steel Plank 240mm With Hooks

240mm-scaffold-plank-with-hooks-ringlock-scaffolding-tube-clamp-scaffold

Code No. Size(mm) Wall Thickness Finishing
SP2412 240x45x1219mm 1.4-2.0mm
  • Hot Dip Galvanized
  • Pre-galvanized
  • Painted
SP2415 240x45x1524mm
SP2418 240x45x1830mm
SP2420 240x45x2000mm
SP2421 240x45x2130mm
SP2424 240x45x2400mm
SP2425 240x45x2500mm
SP2430 240x45x3000mm
Note: Steel Plank with Hooks Length is Customized According to System Scaffolding Ledger Size.

Steel Plank 250mm With Hooks

scaffolding-plank-250mm-with-hooks-construction-steel-board

Code No. Size(mm) Wall Thickness Finishing
SP2512 250x40(50)x1219mm 1.4-2.0mm
  • Hot Dip Galvanized
  • Pre-galvanized
SP2515 250x40(50)x1524mm
SP2518 250x40(50)x1830mm
SP2520 250x40(50)x2000mm
SP2521 250x40(50)x2130mm
SP2524 250x40(50)x2440mm
SP2525 250x40(50)x2500mm
SP2530 250x40(50)x3050mm
Note: Steel Plank with Hooks Length is Customized According to System Scaffolding Ledger Size.

 Scaffolding Catwalk Board 420-500mm

scaffold-cat-walk-board-panels-scaffolding-frame-components-system-scaffold-platform

Code No. Size Wall Thickness Finishing
WSP5012 1219mm 1.0-2.0mm
  • Hot Dip Galvanized
  • Pre-galvanized
WSP5018 1829mm
WSP5020 2000mm
WSP5025 2500mm
WSP5030 3000mm

Scaffolding Catwalk Board Panel are Made from Double Metal Decks of 210mm, 240mm,250mm.Catwalk hooks size can be OD42.7mm for normal frame scaffolding and OD48.3mm for system scaffold. Catwalk Width is customized. Length (centre to Centre,Axial) is distance between 2 vertical frames or ledger size of system scaffolding.

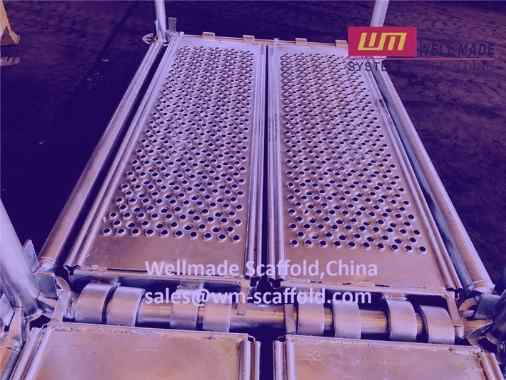

 Scaffolding Plank With Lock 240x67.5mm(Ring lock)

at-pac-ring-lock-scaffolding-plank-pin-lock-scaffold-america-usa-system-modular

Code No. Size Wall Thickness Finishing
SP24088 240x67.5x880m 1.6-2.0mm
  • Pre-galvanized
  • Hot Dip Galvanized
SP24091 240x67.5x914mm
SP24106 240x67.5x1065mm
SP24115 240x67.5x1150mm
SP24121 240x67.5x1219mm
SP24152 240x67.5x1524mm
SP24157 240x67.5x1570mm
SP24183 240x67.5x1830m
SP24213 240x67.5x2130m
SP24244 240x67.5x2440m
SP24305 240x67.5x3050mm
This type of scaffolding plank is used popular in USA Pin Lock system scaffolding(American Ring Lock) with safety lock pins. The design of the plank ends are integraded with ringlock standard and ledgers very well.

 Scaffolding Plank with Sqaure Hooks(230x66mm)

ringlock-scaffolding-planks-pin-lock-scaffold-boards-cuplock-scaffolding-platform

Code No.  Size  Wall  Thickness  Finishing
SP23088  230x66x880mm 1.6-2.0mm
  • Pre-galvanized
  • Hot Dip Gal
SP23091   230x66x914mm
SP23106  230x66x1065mm
SP23115  230x66x1150mm
SP23121  230x66x1219mm
SP23152  230x66x1524mm
SP23157  230x66x1570mm
SP23183  230x66x1830mm
SP23213  230x66x2130mm
SP23244  230x66x2440mm
SP23305  230x66x3050mm

This type of scaffolding planks are popular used in ringlock scaffolding and cuplock scaffolding which is economy and easy to manufacturer. This plank without safety lock pin.

 Full Aluminium Scaffolding Planks

Code No.

Size (WidthxLength)

Weight

(LBS)

aluminium planks aluminum scaffolding board scaffold deck
WMALP1905 19x5' Aluminium Planks

WT.25 LBS

WMALP1907 19x7' Aluminium Planks

WT.30LBS

WMALP1908 19x8' Aluminium Planks

WT.35 LBS

WMALP1910 19x10' Aluminium Planks

WT.39 LBS

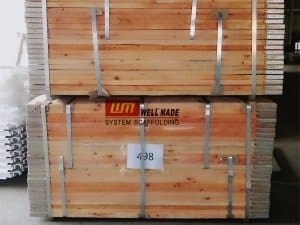

Solid Wood and Laminated Wood Plank for Safe Work Platform
Code No. Description Weight(LBS/KGS) bs2482 scaffold wood plank
WMWB04 DI-65 Plank 4' 16 LBS / 7.27KGS
WMWB06 DI-65 Plank 6' 24 LBS/  10.90KGS
WMWB08 DI-65 Plank 8' 32 LBS/  14.55KGS
WMWB10 DI-65 Plank 10' 40 LBS/  18.19KGS
WMWB12 DI-65 Plank 12' 48 LBS/  21.82KGS
WMWB16 DI-65 Plank 16' 64LBS/  29.09KGS
