Cuplock Accessories Details
Technical Specifications
| Technical Specifications | |||
| Items | Top Cup | Bottom Cup | Ledger Blades |
| Types | Forged & Casted | Pressed Steel | Forged & Casted |
| Sizes | OD48.3mm | OD48.3mm | – |
| Weight | 0.5KG | 0.25KG | 0.25 KG |
| Steel Grades | S235 / Steel 45 & S355 | S235 | S235 & S355 |
| Thickness | – | 5mm | – |
| Surface | Black & Gal | ||
| Brand | Wellmade (WM) | ||
| System Scaffold | Cuplock | ||

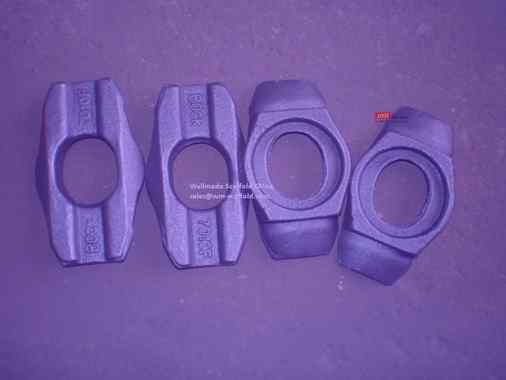

Closed and Open Type Ledger Blade
There are closed type and open type ledger blades for cuplock scaffolding.
- Closed Type Ledger Blades: For Painted Cuplock Scaffolding Ledgers (Save Paint)
- Open Type Ledger Blades: For Hot Dip Galvanized Cuplock Ledgers ( Convenient for Galvanizing)
Drop Forged VS Cast Iron Cuplock Accessories
Forged top cups and ledger blades take more weight and load in the cuplock system. The quality is stable. The surface is dropped and smooth. It is the best cuplock accessory. But forged cuplock accessories are expensive.
Cast iron cups and blades are easier to produce. That is why they are cheaper in cost. It is not as tenacious as forged cuplock accessories. But you can do annealed treatment to make them as strong as forged products.

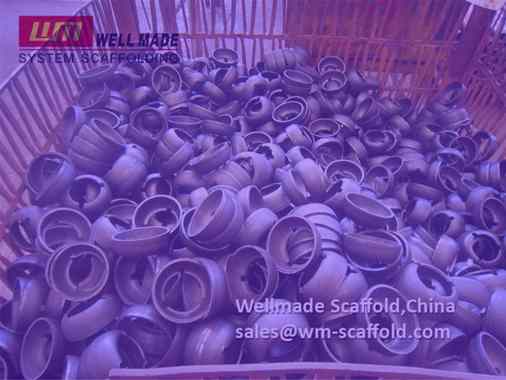

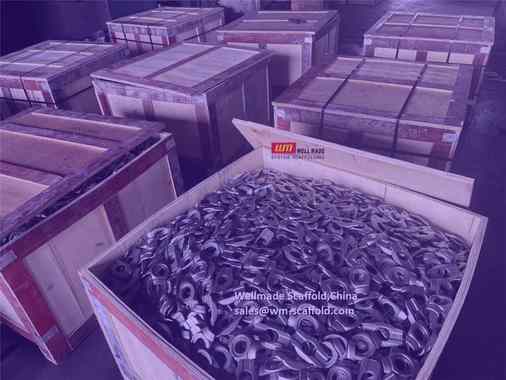

Cuplock Accessories Package
Cuplock accessories are always packed in scaffold cages boxes. You can use timber type or steel type cage for the package. If you want to save cost, the ton bags are also used for the cuplock accessories shipping and container loading.
Send us a mail to ask more questions about cuplock accessories and cuplock components.
