Cuplock Ledger In Manufacturing – Wellmade Scaffold
Cuplock Scaffold Ledgers
The cuplock system is a major modular steel scaffolding system used popularly worldwide. They are safe and stable, with a high-load, designed lock system, and are flexible, meeting all types of construction requirements: all shapes of shoring, building, commercial, and industrial applications.

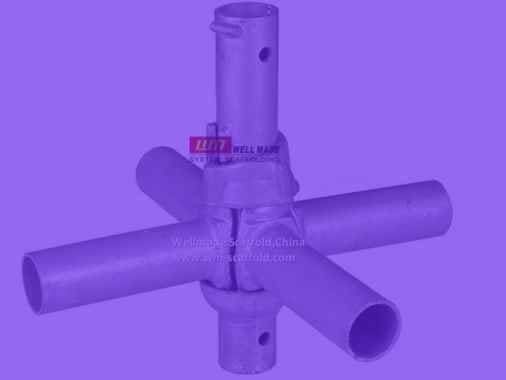

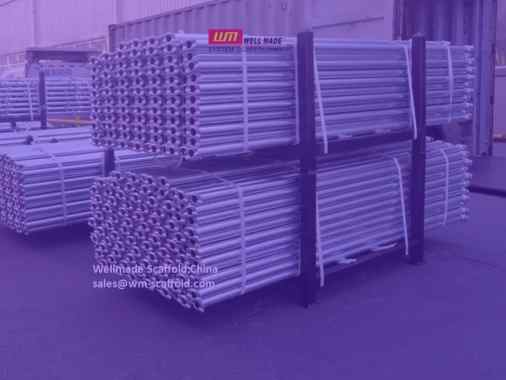

Cuplock ledgers are the basic components of the cuplock scaffolding system. They function as horizontal members of the system, working with the verticals to form the basic frames of the construction scaffolding.
Cuplock ledger erection is very easy; you need to insert the ledger blades into the bottom cups and tighten them by the top cups of the verticals.
Cuplock Ledger Weight List
| Cuplock Scaffolding Ledger Weight List | |||
| Code No. | Items | Sizes | Weight |
| WCL060 | 0.6m Cuplock Ledger | OD48.3x600mm | 5.44 KG |
| WCL090 | 0.9m Cuplock Ledger | OD48.3x900mm | 7.82 KG |
| WCL100 | 1.0m Cuplock Ledger | OD48.3x1000mm | 8.62 KG |
| WCL120 | 1.2m Cuplock Ledger | OD48.3x1200mm | 9.41 KG |
| WCL125 | 1.25m Cuplock Ledger | OD48.3x1250mm | 10.62 KG |
| WCL130 | 1.30m Cuplock Ledger | OD48.3x1300mm | 11.02 KG |
| WCL150 | 1.5m Cuplock Ledger | OD48.3x1500mm | 12.62 KG |
| WCL160 | 1.6m Cuplock Ledger | OD48.3x1600mm | 13.4 KG |
| WCL180 | 1.8m Cuplock Ledger | OD48.3x1800mm | 14.99 KG |
| WCL200 | 2.0m Cuplock Ledger | OD48.3x2000mm | 16.58 KG |
| WCL250 | 2.5m Cuplock Ledger | OD48.3x2500mm | 20.58 KG |
Cuplock Ledger Load Capacity
| Cuplock Ledger Load Capacity – Centre Point Test | ||
| No. | Ledger Length | Ultimate Load |
| 1 | 0.5m Ledger | 48 KN |
| 2 | 1.0m Ledger | 21 KN |
| 3 | 1.5m Ledger | 11 KN |
| 4 | 2.0m Ledger | 10 KN |
| 5 | 2.5m Ledger | 9 KN |

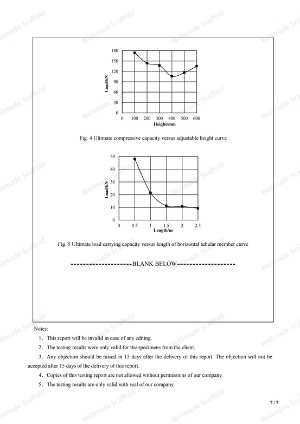

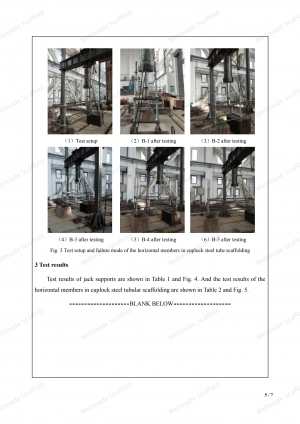

Cuplock Ledger Load Capacity Test Report
Cuplock Scaffold Ledger Erection Video
Cuplock Ledgers Erection Steps
- Insert cuplock ledger blades inside the bottom cup of the cuplock standards
- One set of cups can lock four pcs of the cuplock ledgers one time
- Move the top cup of the cuplock standards at the top of the ledger blades
- Use a hammer to fix the top cup to lock all of the ledger blades inside between the top cup and the bottom cup, which ensures the ledger blade does not move during construction
Cuplock Ledgers VS. Cuplock Transoms
Cuplock ledgers and cuplock transoms are both transverse horizontals for the cuplock system.
Cuplock ledgers have two ledger blades on each side, connecting the top and bottom cups of the cuplock vertical parts, forming the basic frames of construction scaffolding.
While cuplock transoms have one large and one small jaw at each end of scaffold tubes. The jaws connecting to cuplock ledgers in construction form open areas of the work platform.

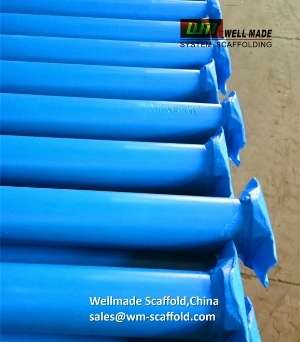

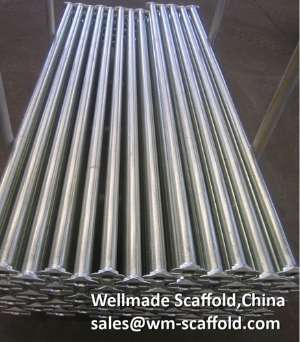

Painted VS. Galvanized Cuplock Ledgers
Cuplock ledgers are steel scaffolding components; they are always treated with painted, coated, or hot-dip galvanised surface finishes. The coating, painting and galvanising make the cuplock ledgers have a long life and withstand repeated use.
Cuplock Scaffolding Ledger Steel Grades
The steel grade of the cuplock scaffolding ledgers can be S235 (normal strength) or S355 (higher strength). The S355 steel grade helps cuplock ledgers withstand greater loads in construction.
Ledger blades for steel cuplock scaffolding ledgers can be drop-forged or cast-iron types. Forged ledger blades make the cuplock ledger more durable, allowing it to be used more times in construction.
More Cuplock System Components:
Why Wellmade Cuplock Ledgers?
- Tested Safety： Our Lab tests cuplock to ensure load safety.
- ISO9001 Quality Management: Raw Material Tested, Accessories Tested, Welding Line Tested
- CE Certified Factory: Wellmade is CE Certified (Check ISO 3834 and EN 1090 Certification)
- Customise Your Sizes and Logos (Stickers): Free customised design, logos, etc.
- Ensure Parts are Compatible with Each Other: Provide your free CAD design and mock-up parts during manufacturing to ensure cuplock system parts are compatible.
- Reasonable Price: Wellmade is a leading cuplock scaffolding manufacturer. Automatic, efficient management keeps prices low and products high-quality.
- Fast Delivery: Our large production capacity ensures quick delivery for your cuplock ledger orders.
- Offer MTC Certificate: Issue an MTC for each of your orders.
- Offer Test Report: Issue a test report for your order.
Send us an email to get prices and more details on the cuplock scaffolding ledgers now.
