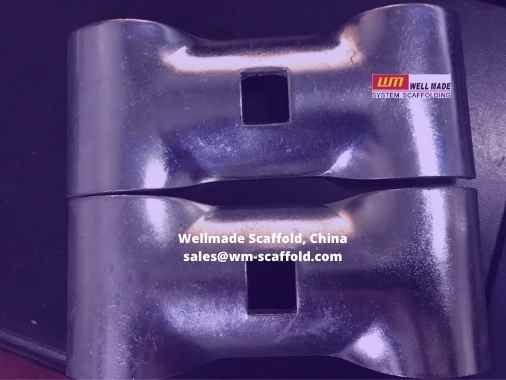

Wellmade Fence Couplers
Wellmade fence couplers are one of the scaffolding clamps and fittings. It is used to connect two scaffold fence panels. According to the scaffold fence panel vertical poles diameters. Thus you can find customized scaffold fence couplers specified for your scaffolding fence panels and meshes.
Scaffold Fence Coupler Types
Wellmade manufactures 2 types of scaffold fence couplers. One is pressed steel type, another one is forged fence couplers.
Pressed fence couplers are the most common scaffold fencing clamps. It is made from 4.0mm high-strength steel plates with 8.8 class scaffold bolts and nuts. You can find both E-galvanized (zinc-plated) fence couplers in Wellmade. While hot dip galvanized scaffold fence couplers are available too as your request.
More than pressed scaffold fence couplers, forged fencing panel couplers are requested in many countries like the UK, etc. The forged fence couplers are with forging nut manufacturing from the high-strength steel bars. While the cost is much higher than pressed steel fencing clamps.
Fence Coupler In Construction
Scaffold fence couplers make the security scaffold fencing and panels more stronger and stable in construction and events security. In addition, It expresses the scaffold fencing assembly and erection.
While the fence coupler scaffolds are used widely in all types of barriers and fences. Include mesh panels, crowd control barriers, pedestrian panels, hoardings, etc.
Different from normal tubular scaffolding clamps, the fence coupler sizes are much smaller than standard O.D 48.3mm scaffold tube clamps. Thus we call it lightweight scaffolding fittings.
Scaffold Fence Coupler Specifications
Scaffold Fence Coupler | |||||
Code | Items | Weight | Specifications | Grade | Finishing |
WFCP01 | Fence Coupler | 0.36KG | 4mm | S235 | E-gal&HDG |
