Ringlock Scaffolding Standards

Ringlock standards are the vertical parts of ring lock system modular scaffold. Called ringlock uprights, ringlock posts, and scaffolding poles.
Ringlock standards are composites of one scaffold tube and several rosette rings. The rosette rings are welded at 500 intervals to allow ringlock horizontals(O ledgers, U Ledgers, O Type Truss Ledgers, U Type Truss Ledgers, Reinforced Ledgers), O type and U type brackets (one to three boards width), and ringlock braces connected to.

There are 48mm ringlock standards for traditional ring systems and OD60mm ringlock standards for heavy duty ringlock systems. In addition, ringlock standards are with bolted, pressed-in couplings. The coupling pins are with straight holes or cross holes and fixed by hinged pins or 8.8 class bolt&nuts.

Wellmade manufactures ringlock scaffold standards according to ISO 9001. The ringlock scaffolding materials are certified by CE in Europe and past AS1576 tested.

Hot dip galvanizing surface finishing extends the ringlock standard life for more than 10 years.  Send us a email to get a competitive price now.

Get Latest Price
  • Photos
  • Video
  • Specifications
  • Delivery
  • Raw Material: S355 Steel
  • Specifications: OD48.3×3.2mm
  • Standard:  EN 12810 & AS 1576
  • Sizes: 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m, 3.5m and 4.0m
  • Finishing: Hot dip galvanized



  • Port: Xingang Port, Tianjin, China
  • Transportation:  By Sea
  • Lead Time: 25-35 Days
  • Payment: LC & T/T (CIF)
Send An Inquiry

Related

https://www.wm-scaffold.com/wp-content/uploads/2023/08/Three-Ties-of-Ringlock-Scaffold-Tower-Load-Capacity-Test-Bearing-Weight-of-Ringlock-System.jpg
Ringlock Scaffold Standard Load Capacity
https://www.wm-scaffold.com/wp-content/uploads/2020/10/ringlock-scaffolding-mock-up-inspection.jpg
Ringlock Scaffolding
https://www.wm-scaffold.com/wp-content/uploads/2020/11/Shore-System-Ringlock-Scaffolding.jpg
Shore System Ringlock Scaffolding
https://www.wm-scaffold.com/wp-content/uploads/2021/05/Oil-and-Gas-Scaffolding-Ringlock-Standard-in-Galvanizing-with-Bolted-Spigot.jpg
How to Fix Scaffold Spigot on Ringlock Standards

Ringlock Standards

Size&Specifications

CodeItemsSize&SpecWeightSteel GradeFinishing

Traditional Ringlock Scaffold Standards

WRSP48050.5m Ringlock StandardsO.D 48.3 x 500mm3.15S235&S355HDG
WRSP48070.66m Ringlock Standard PostO.D 48.3 x 660mm3.72S235&S355HDG
WRSP48101.0m Ringlock Standard PostO.D 48.3 x 1000mm5.45S235&S355HDG
WRSP48151.5m Ringlock Standard PostO.D 48.3 x 1500mm7.75S235&S355HDG
WRSP48202.0m Ringlock Standard PostO.D 48.3 x 2000mm10.05S235&S355HDG
WRSP48252.5m Ringlock Standard PostO.D 48.3 x 2500mm12.34S235&S355HDG
WRSP48303.0m Ringlock Standard PostO.D 48.3 x 3000mm14.64S235&S355HDG
WRSP48353.5m Ringlock Standard PostO.D 48.3 x 3500mm16.94S235&S355HDG
WRSP48404.0m Ringlock Standard PostO.D 48.3 x 4000mm19.24S235&S355HDG

Heavy Duty Ringlock Scaffold Standards

WRSP60050.5m Standards 60mmO.D 60.3 x 500mm3.96S235&S355HDG
WRSP60101.0m Standards 60mmO.D 60.3 x 1000mm6.76S235&S355HDG
WRSP60151.5m Standards 60mmO.D 60.3 x 1500mm9.56S235&S355HDG
WRSP60202.0m Standards 60mmO.D 60.3 x 2000mm12.37S235&S355HDG
WRSP60252.5m Standards 60mmO.D 60.3 x 2500mm15.17S235&S355HDG
WRSP60303.0m Standards 60mmO.D 60.3 x 3000mm17.97S235&S355HDG
WRSP60353.5m Standards 60mmO.D 60.3 x 3500mm20.78S235&S355HDG
WRSP60404.0m Standards 60mmO.D 60.3 x 4000mm23.58S235&S355HDG

Ringlock Scaffolding Coupling Pin Type

Ringlock standards are connected by coupling pins between each other in scaffolding construction. The coupling pin is also called spigot pin or joint pin, spigot connector, etc.  In construction, they are inserted inside of the ringlock standard poles and fixed by hinged pins or bolts and nuts through the holes on the ringlock standards.
According to coupling pin fixing ways, there are several different types of ringlock standards: fixed pressed-in spigot, bolted spigot ringlock standards, and standards without any spigot (open-end standards).

Fixed Spigot Ringlock Standards

Fixed ringlock standards are also called pressed-in standards. The coupling connectors are fixed inside of the ringlock standard tubes by punching (pressing) way.
Fixed spigot ringlock standards are convenient in construction that save connector assembly time. But it is not removed. So will not suit concrete slab and beam shoring, which need to put scaffold U heads inside of the standards to support the formwork(scaffold) beams.

Bolted Spigot Ringlock Standard

When ringlock couplings are bolted on the ringlock standards. The standards are called bolted ringlock standards.
Bolted standard spigot is removable. It is very convenient to use in normal construction same as fixed spigot standards. When you remove the bolt and nut and coupling pins, the ringlock standard can work with scaffolding adjustable U head jacks or fixed U head to support concrete slabs and beams.

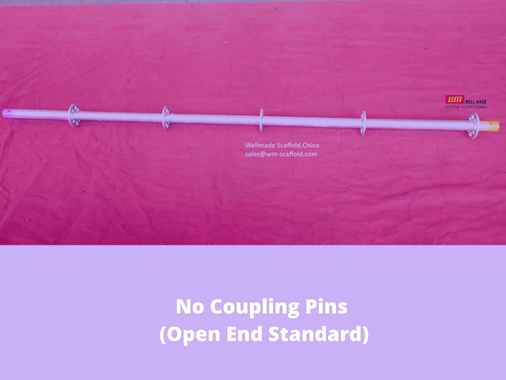

Open End Ringlock Standards

The open-end ringlock scaffold standards are designed for concrete formwork and shuttering. Basically, it is used to work together with the scaffold top head(U head, fork head etc) for slab and beam formwork sysetm. If you want to use them for normal construction, need to assemble the ringlock coupling pins to connect with other ringlock uprights.

How to Assembly Ringlock Scaffolding

Ringlock Ledgers and Standards

Ringlock ledgers and ringlock standards are two important parts of the modular ring lock system. Ringlock ledgers are horizontal of the ring system, while the ring lock standards are the vertical parts of the ring system.

In construction, the ledgers are connected to the standard from 4 directions to form the ringlock scaffolding towers and frames for accessing and working, shoring, construction and building, etc.

Wellmade Ringlock Standards

Wellmade’s Ringlock Scaffolding Standards Includes with Rosette Rings and Coupling Pins. It is Post Poles Forming Ring Lock System Scaffold Tower.
Wellmade Produces All Types of Ringlock Scaffolding Standards Include are USA & Canada Type, Singapore Type, New Zealand Type, Chile Type, Europe Layher Type, etc.
In Fabrication, We Produce O.D 48.3mm Light Weight Ringlock Scaffolding Standard and O.D 60.3mm Ringlock Scaffolding Poles.
O.D 48.3mm Ringlock Scaffold Standard is Most Common Used In All Construction Include Civil, Industrial, Chemical, Gas, Staging etc.
OD 60.3mm Ringlock Scaffolding Standard is Heavy Duty Ringlock System. It is Hi Load Capacity for Infrastructure Bridge, Highway and Heavy Duty Required Shoring and Shuttering and Temporary Propping.
You can have hot dip galvanized ringlock scaffolding standard. While Painted and Powder Coated Ringlock Scaffolding is available too with Customized Colour.
Welding Quality of the Ringlock Scaffolding Standard is according to EN1090-1 and ISO 3834-2 Standard of  CE certificate.
