Ringlock Scaffold Intermediate Transom: Support for Access Platform

Ringlock scaffold intermediate transom is an important part of ringlock system. It is made by OD48.3mm scaffold tubes. In construction, it is used to support scaffold access platforms between ringlock ledgers. You can find deep ringlock scaffold intermediate transoms here too. The deep(low) type ringlock scaffold intermediate transoms are put under the scaffold platforms. It is used to strengthen ring lock scaffold board bearing.

Send us your requirement to get a competitive price now.

Ringlock Scaffold Intermediate Transom Sizes&Spec

Code No.ItemsLengthSize&SpecStee GradeWeight
WRIT115Ringlock Transom 1.15m1.15m(3’10”)OD48.3 TubeS235 / S 3555.36KG
WRIT157Ringlock Transom 1.57m1.57m(5’2″)OD48.3 TubeS235 / S 3556.85KG
WRIT213Ringlock Transom 2.13m2.13m(7′)OD48.3 TubeS235 / S 3558.91kG
WRIT305Ringlock Transom 3.05m3.05m(10′)OD48.3 TubeS235 / S 35512.20KG
WRIT073Ringlock Transom 0.73m0.73m(2’5″)OD48.3 TubeS235 / S 3553.80KG
WRIT109Ringlock Transom 1.09m1.09m(3’7″)OD48.3 TubeS235 / S 3555.10KG
WRIT140Ringlock Transom 1.40m1.40m(4’7′)OD48.3 TubeS235 / S 3557.40KG
WRIT207Ringlock Transom 2.07m2.07m(6’10”)OD48.3 TubeS235 / S 35510.3KG
WRIT257Ringlock Transom 2.57m2.57m(8’5″)OD48.3 TubeS235 / S 35512.5KG
WRIT307Ringlock Transom 3.07m3.07m10’1″)OD48.3 TubeS235 / S 35515.0KG

Wellmade Ringlock Scaffold Intermediate Transom

Wellmade is a famous modular scaffold system manufacturer and exporter. We do not only produce ringlock scaffolding intermediate transom but also produce the intermediate Transom for cuplock scaffolding, kwiktage scaffolding, etc.

All system scaffold intermediate transoms are used to support the scaffold work platforms & planks. According to the types of intermediate transoms, you can find tubular type transom for the ringlock system. Tubular and omega transom for cuplock scaffolding. For kwikstage scaffolding transoms, they are manufactured from double angle steels. While kwiktage scaffold boards(battens) sit on the double angle kwikstage transom in construction.

For ringlock scaffold intermediate transoms, there are 2 different types. One is used to connect the scaffold planks between ringlock ledgers. This type of ringlock intermediate transom is also called mid transom. It is mid-parts between the ring system scaffold ledgers. Using the mid transom offers support for the ringlock scaffold work platform in distance in ringlock ledgers.

Another type of ringlock transom is called deep ringlock scaffold transom. It is put under the ringlock scaffolding planks. The deep type ringlock scaffold intermediate transom is used to strengthen the scaffold board bearing.

In order to make the ringlock transom more stable and safe. Wellmade design the ringlock scaffolding intermediate transom with wedge lock ends and pins. The wedge locks fix the ringlock transoms on the scaffold system towers. It makes the ringlock scaffolding tower more stable, strong, and durable.

Wellmade produces mid transoms for European countries. While the deep type intermediate transom is manufactured for Singapore construction companies. Both ringlock intermediate transoms are popularly used in building construction staging as well as industrial scaffolding like stair scaffold, access scaffolding and suspended scaffold, etc. In addition, if you want to support ringlock scaffolding stair, you can ask for ringlock stair transoms.

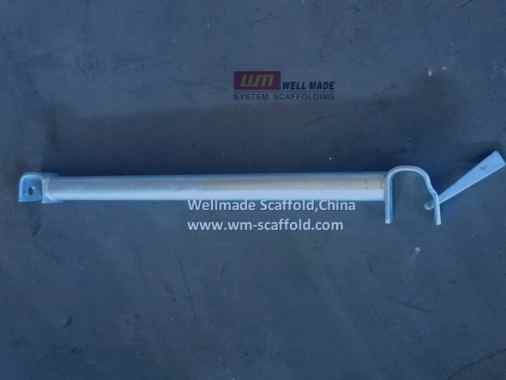

ringlock scaffold stair transom - wellmade intermediate transoms
ringlock scaffold stair transom – wellmade intermediate transoms

Wellmade has complete standard sizes of the intermediate transoms. While we are able to customize your ringlock transom according to your sizes, specifications, and requirement.  In the quality control system, we ensure all of the intermediate transoms are mocked up inspected. The mock-up inspection makes all ringlock system components, parts, accessories are compatible with each other. In measurement, the ring lock transom effective sizes are always the same as horizontal ledgers.

In fabrication, Wellmade manufactures the intermediate transom by high load steel structures. The high-strength steel material keeps our ringlock transom with heavy-duty bearing and high load capacity for your construction and shoring.
